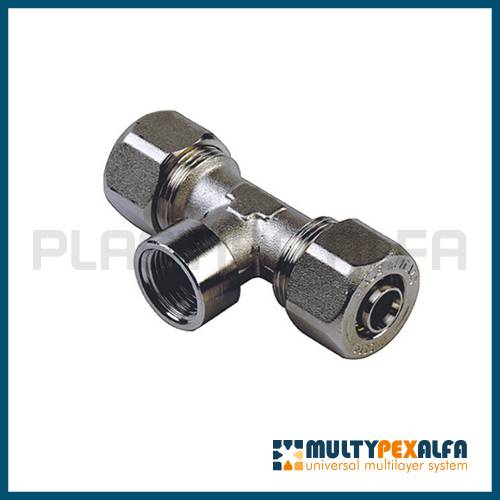

Tee 90°- female thread - Plastica Alfa

Tee 90° – female thread with screwed ends for multilayer pipes. The T-fitting is used for plumbing and heating systems and is the most practical and economical connection solution, guaranteeing reliability and ease of installation.

All Plastica Alfa screw fittings are made of brass and equipped with an o-ring to guarantee a seal in combination with the profile, and a gasket to eliminate any stray currents. Tee 90°- female thread integrates perfectly with the Multypexalfa multilayer pipe system.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

Download area

VARIANT	SIZE	BAG
MS74940-1-B	16 x 1⁄2” x 16 x 2,0	10
MS74940-2-B	20 x 1⁄2” x 20 x 2,0	10
MS74940-2-C	20 x 3⁄4” x 20 x 2,0	10
MS74940-3-C	26 x 3⁄4” x 26 x 3,0	5
MS74940-3-D	26 x 1” x 26 x 3,0	5
MS74940-4-D	32 x 1” x 32 x 3,0	5
MS74940-1-BS	16 x 1⁄2” x 2,25	10
MS74940-2-BS	20 x 1⁄2” x 2,50	10
MS74940-3-CS	20 x 3⁄4” x 2,50	5

THREADS:

All connection threads between fittings belonging to the ‘screw‘ and ‘press‘ series are made according to standard EN 10226-1,2 (formerly ISO 7-1).

The threads are conical for male threads and cylindrical for female threads.
