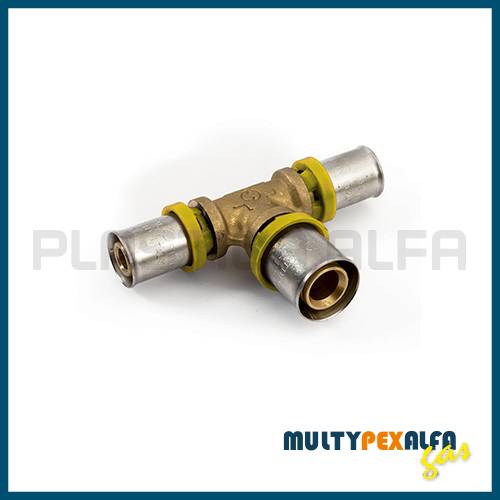

Reducing 90° tee with press connections suitable for use in gas transport systems. Ideal for gas installations in homes, commercial buildings, residential facilities and more.
All GAS press fittings from Alfa Plastica are made of brass and equipped with an o-ring to ensure a seal in combination with the profile, and a nylon ring to insulate the fitting body. The recing 90° Tee integrates perfectly with the Multypexalfa GAS multilayer pipe system.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE BAG BOX
MG94920-2-1-2 20 x 2,0 x 16 x 2,0 x 20 x 2,0 10 40
MG94920-3-1-3 26 x 3,0 x 16 x 2,0 x 26 x 3,0 5 20
MG94920-3-2-3 26 x 3,0 x 20 x 2,0 x 26 x 3,0 5 20
THREADS:
All connection threads between fittings belonging to the ‘screw‘ and ‘press‘ series are made according to standard EN 10226-1,2 (formerly ISO 7-1).
The threads are conical for male threads and cylindrical for female threads.
