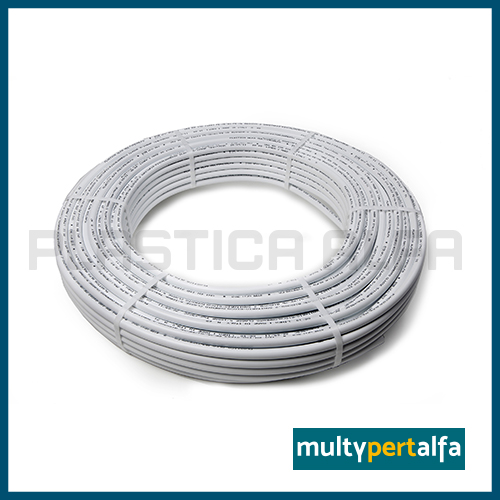

The PERT-Al-PERT multilayer pipe from the Multypertalfa line consists of five layers: the two PERT layers (inner and outer) are bonded to the aluminium intermediate layer by two stabilised polymer bonding layers. The aluminium layer provides an oxygen barrier, reduces linear thermal expansion effects and gives the tube dimensional stability and flexural strength. The internal material (PERT) provides resistance to high temperatures under pressure while maintaining the potability characteristics of the water.
Produced in rolls of different sizes, it is ideal for underfloor heating and cooling systems and is widely used in compressed air systems, naval and industrial plants.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE mt per roll
00TMP160 16 x 2.0 x 0.2 100
00TMP160-250 16 x 2.0 x 0.2 250
00TMP160-500 16 x 2.0 x 0.2 500
00TMP200 20 x 2.0 x 0.25 100
00TMP260 26 x 3.0 x 0.3 50
00TMP320 32 x 3.0 x 0.5 25
CONTINUOUS OPERATING TEMPERATURES AND PRESSURES:
95°C 10 bar
THERMAL CONDUCTIVITY:
0,40 W/mK
TEMPERATURE PEAK:
110°C
LINEAR THERMAL EXPANSION COEFFICIENT:
0,025 mm/m·K
ALLOWABLE TEMPERATURES:
-30°C ÷ 100°C
RUGOSITÁ INTERNA:
7·10^-6 m
APPLICATION CLASSES:
2/10 bar, 4/10 bar, 5/10 bar
MINIMUM BENDING RADIUS (with bending spring):
3,5 x Ø ext
MINIMUM BENDING RADIUS (without bending spring):
5 x Ø ext
OXYGEN PERMEABILITY:
0 mg/l
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011
REFERENCE STANDARDS:
UNI EN ISO 21003, UNI EN ISO 15875, DIN 16837, DIN 16892
