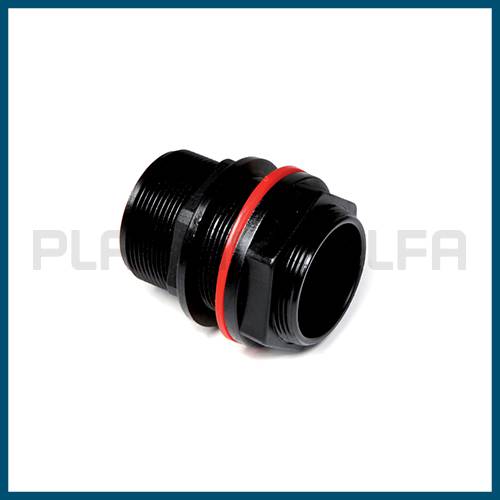

The Tank adaptor is designed for threaded connections from ø ½” to 2″ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The connection, made of black, UV-stabilised high-impact PP, has BSP (GAS) male threads and is designed and tested for quick connection of taps and ball valves on jerry cans and tanks, always guaranteeing a PN16 working pressure.
In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE PN BAG BOX
15320-B ½” PN16 10 800
15320-C ¾” PN16 10 600
15320-D 1” PN16 10 400
15320-F 1"½ PN16 10 200
15320-G 2" PN16 10 120
*| UV-stabilised high-impact black propylene with high ageing stability |*
REINFORCING RING:
The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.
WORKING TEMPERATURES:
MIN= -10°C MAX= +80°C
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).
REFERENCE STANDARDS:
- Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
- Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
- Prove [Tests]: ISO 1167
