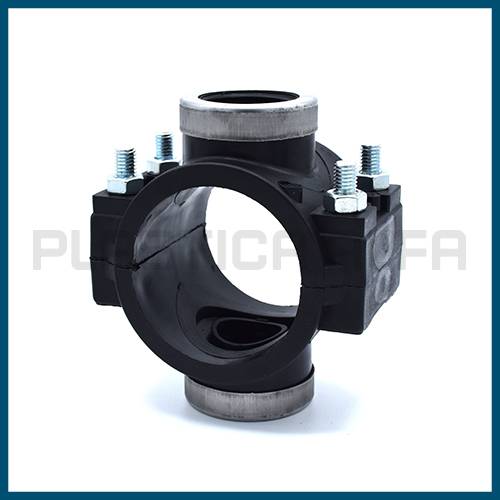

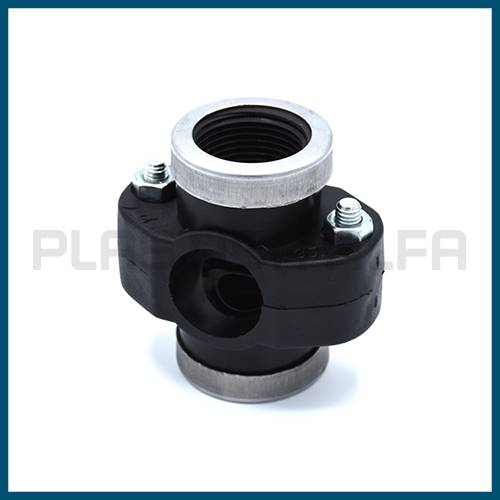

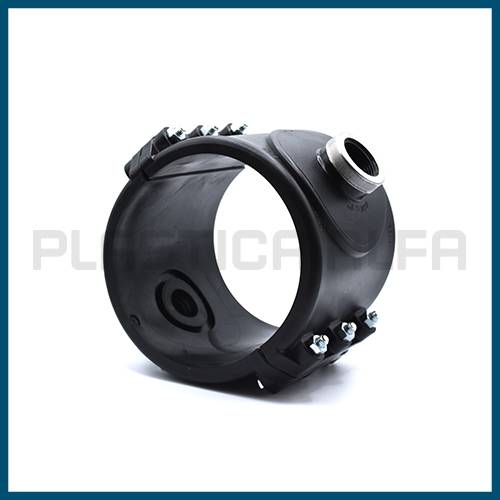

La Presa a staffa doppia con anello di rinforzo è progettata per la realizzazione di due veloci ed affidabili derivazioni d’utenza per tubi in PP o in PE, in applicazioni idrauliche legate alla distribuzione di fluidi in pressione. La presa a staffa doppia con anello di rinforzo è realizzata in PP nero ad alto impatto stabilizzato UV ed è disponibile dal diametro 25 fino al 315: è dotata di due filettature femmina BSP (GAS) dal ½” a 4” (dal 1” al 4” è disponibile su richiesta in versione filettata NPT). Le filettature sono rinforzate con anello in Acciaio INOX AISI 430 che ne garantisce una elevatissima tenuta alla pressione. E’ corredata di guarnizione in gomma nitrilica e di bulloni in acciaio galvanizzato o in Inox A/304 (su richiesta).
In particolare è usata negli impianti per il trasporto di acqua potabile negli acquedotti e negli impianti civili, in irrigazione e giardinaggio, impianti geotermici, per il convogliamento di acque reflue ed industriali.
CATALOGHI GENERALI E SCHEDE TECNICHE IN
Variant size bolt bag box
17021-03-B 25 x ½" 2 1 170
17021-03-C 25 x ¾" 2 1 170
17021-04-B 32 x ½" 2 1 150
17021-04-C 32 x ¾" 2 1 150
17021-06-B 40 x ½" 2 1 130
17021-06-C 40 x ¾" 2 1 130
17021-07-B 50 x ½" 2 1 80
17021-07-C 50 x ¾" 2 1 80
17021-07-D 50 x 1” 2 1 80
17021-07-E 50 x 1" ¼ 2 1 80
17021-08-B 63 x ½" 4 1 100
17021-08-C 63 x ¾" 4 1 100
17021-08-D 63 x 1” 4 1 100
17021-08-E 63 x 1" ¼ 4 1 100
17021-09-B 75 x ½" 4 1 70
17021-09-C 75 x ¾" 4 1 70
17021-09-D 75 x 1” 4 1 70
17021-09-E 75 x 1" ¼ 4 1 70
17021-09-F 75 x 1" ½ 4 1 70
17021-10-B 90 x ½" 4 1 55
17021-10-C 90 x ¾" 4 1 55
17021-10-D 90 x 1” 4 1 55
17021-10-E 90 x 1" ¼ 4 1 55
17021-10-F 90 x 1" ½ 4 1 55
17021-10-G 90 x 2” 4 1 50
17021-11-B 110 x ½" 4 1 40
17021-11-C 110 x ¾" 4 1 40
17021-11-D 110 x 1” 4 1 40
17021-11-E 110 x 1" ¼ 4 1 40
17021-11-F 110 x 1" ½ 4 1 40
17021-11-G 110 x 2” 4 1 35
17021-11-H 110 x 2”½ 4 1 35
17021-11-H 110 x 2”½ 6 1 25
17021-12-B 125 x ½” 4 1 35
17021-12-C 125 x ¾" 4 1 35
17021-12-D 125 x 1” 4 1 35
17021-12-E 125 x 1" ¼ 4 1 35
17021-12-F 125 x 1" ½ 4 1 35
17021-12-G 125 x 2” 4 1 35
17021-12-H 125 x 2” ½ 4 1 35
17021-13-B 140 x ½" 6 20
17021-13-C 140 x ¾" 6 20
17021-13-D 140 x 1” 6 20
17021-13-E 140 x 1" ¼ 6 20
17021-13-F 140 x 1" ½ 6 20
17021-13-G 140 x 2” 6 20
17021-13-L 140 x 3" 6 10
17021-14-B 160 x ½" 6 15
17021-14-C 160 x ¾" 6 15
17021-14-D 160 x 1” 6 15
17021-14-E 160 x 1" ¼ 6 15
17021-14-F 160 x 1" ½ 6 15
17021-14-G 160 x 2" 6 15
17021-14-L 160 x 3" 6 15
17021-14-M 160 x 4" 6 10
17021-16-B 200 x ½" 6 6
17021-16-C 200 X ¾" 6 6
17021-16-D 200 x 1" 6 6
17021-16-E 200 x 1" ¼ 6 6
17021-16-F 200 x 1" ½ 6 6
17021-16-G 200 x 2" 6 6
17021-16-L 200 x 3" 6 6
17021-16-M 200 x 4" 6 6
17021-17-B 225 x ½" 6 4
17021-17-C 225 x ¾" 6 4
17021-17-D 225 x 1” 6 4
17021-17-E 225 x 1" ¼ 6 4
17021-17-F 225 x 1" ½ 6 4
17021-17-G 225 x 2" 6 4
17021-17-L 225 x 3" 6 4
17021-17-M 225 x 4" 6 4
17021-18-B 250 x ½" 6 3
17021-18-C 250 x ¾" 6 3
17021-18-D 250 x 1” 6 3
17021-18-E 250 x 1" ¼ 6 3
17021-18-F 250 x 1" ½ 6 3
17021-18-G 250 x 2" 6 3
17021-18-L 250 x 3" 6 3
17010-18-M 250 X 4" 6 3
17021-20-D 315 x 1” 6 3
17021-20-E 315 x 1" ¼ 6 3
17021-20-F 315 x 1" ½ 6 3
17021-20-G 315 x 2" 6 3
17021-20-L 315 x 3" 6 3
17021-20-M 315 x 4” 6 3
TEMPERATURE OPERATIVE:
MIN= -10°C MAX= +80°C
IDONEITÀ AL CONTATTO CON ACQUA POTABILE:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).
NORME DI RIFERIMENTO:
- Tubi serie metrica [Metric pipes]: UNI EN 12201, ISO 11922-1, DIN 8074, AS/NZS 4130, BS 6572, BS6730, ISO 4427, UNI 7990, ISO 12162
- Tubi serie IPS [IPS pipes]: ASTM D 3035, F714, AWWA C-901/906
- Filetti BSP [BSP threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
- Filetti NPT [NPT threads]: ANSI-ASME B1.20.1
- Prove [Tests]: ISO 13460, ISO 17885 (ex ISO 14236)
VERSIONI PER TUBI SERIE METRICA:
- PE (PEBD, PEMD, PEAD)
- PPR
- PVC
17010
17020
Diametri
ø 20 ÷ ø 315
Filettature
ø ½” ÷ ø 4″
senza anello di rinforzo
ø 20 ÷ ø 63 – PN 12.5
ø 75 ÷ ø 315 – PN 10
ø 140 ÷ ø 160 – PN 12.5
ø 3″ ÷ ø 4″ – PN 6
17011
17021
Diametri
ø 20 ÷ ø 315
Filettature
ø ½” ÷ ø 4″
con anello di rinforzo
ø 20 ÷ ø 63 – PN 16
ø 75 ÷ ø 315 – PN 12.5
ø 140 ÷ ø 160 – PN 16
ø 3″ ÷ ø 4″ – PN 10
17050
Diametri
ø 32
Portagomma
ø 16
PN 4
17005
Diametri
ø 20 ÷ ø 40
Filettature
ø 16
PN 6
17910
Diametri
ø 25 ÷ ø 125
Raccordi a compressione
ø 20 ÷ ø 40
PN 16
37010
Diametri
ø 32 ÷ ø 110
Filettature
ø 16
PN 6
VERSIONI PER TUBI ZINCATI:
17030
17040
Diametri
ø 60 ÷ ø 120
Filettature
ø ½” ÷ ø 1″¼
PN 10
VERSIONI PER TUBI IPS (NPS)
27010
27011
Diametri
ø 1″½ ÷ ø 6″
Filettature
ø ½” ÷ ø 2″
PN 16
